Ad Serving Platform - System Design (reference)

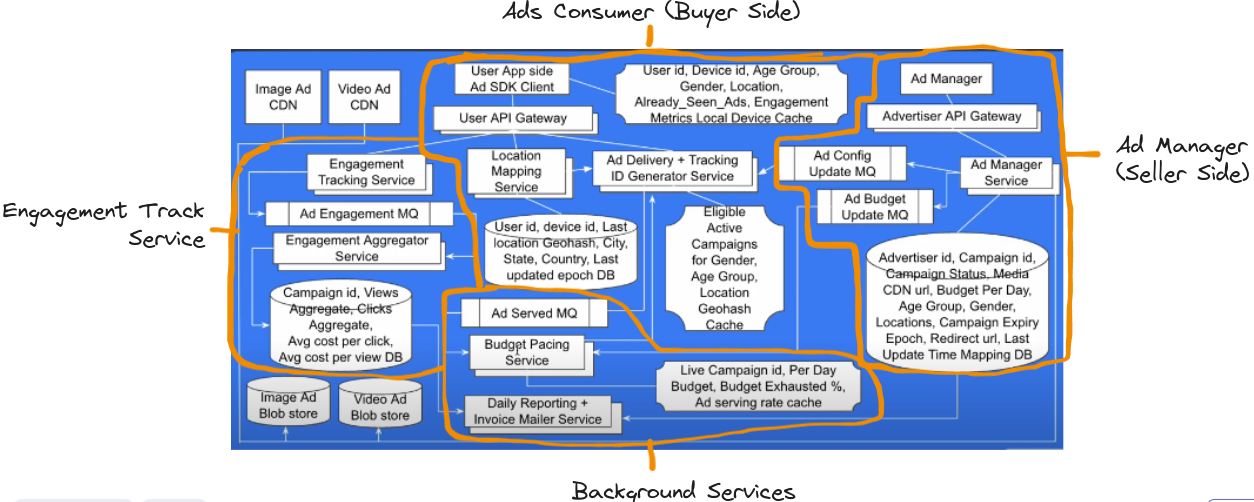

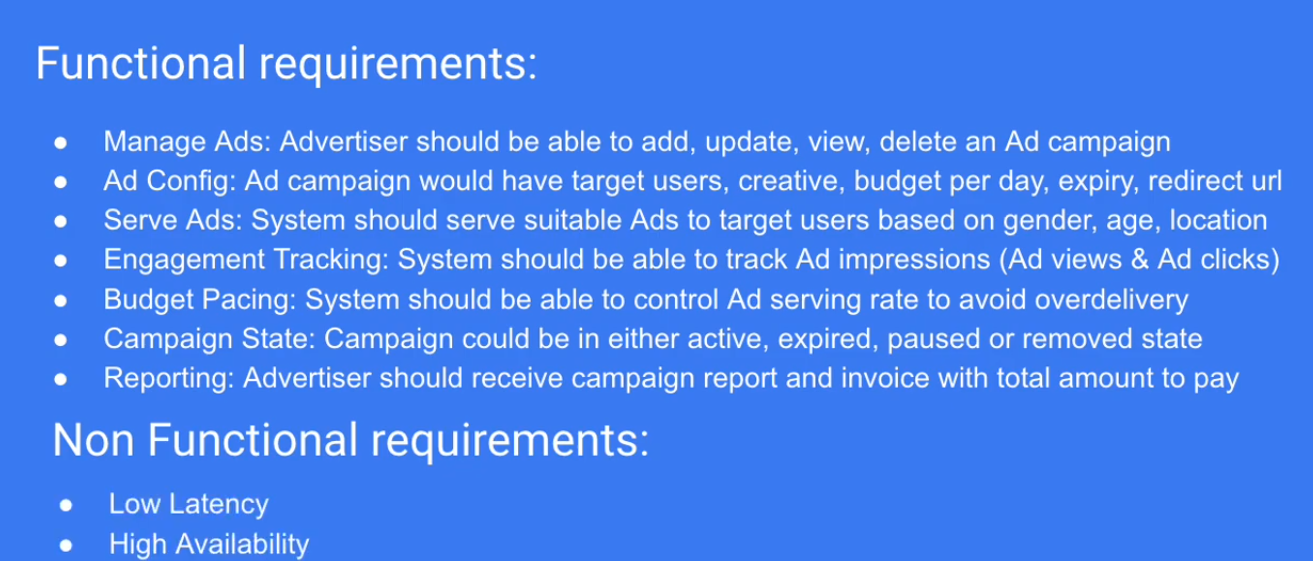

Ad Server (Advertiser/Seller Side) + Ad Config

• CRUD Campaigns, Ads adding them to stores

• Maintains budgets for seller side

• Ad Config Queue: Updates in campaigns, budgets, … on seller side

Ad Consumer - (User / Buyer Side)

User API Gateway

• Ad Fetching - starts Ad Auction & service to client SDK
• Cache Active Campaigns, Ads for Real Time Exchanges

Ad Delivery - Client side

• Ad SDK Client for Integration with User App(Buyer App)
• Storing Location Insights (per User App)

Ad Tracking

• Tracking actions on Ads - Reach, Clicks, Orders.
• Send Events to Engagement tracking Service

Engagement Tracking Service (ETS)

• Listens to Engagement Triggers & Aggregates in store

Background Services

• Daily Reporting(Per Day):  Reports Engagement from ETS to Ad Manager (Seller Side).
• Budget Pacing Service(Real Time):  When Ad is Served, budget/campaign metrics is updated to control over-serving
